Fuel Cell System
Jarvy Energy’s fuel cell system is a modular power unit that integrates solid-state hydrogen storage technology, efficient fuel cell stacks, and intelligent control systems in a deep and integrated manner. We can customize the development of this system according to the specific needs of customers, in terms of output power (from watt-level to kilowatt-level), hydrogen storage capacity, control logic (such as start-stop characteristics, load tracking), etc. This system has comprehensive advantages such as zero emissions, low noise, high conversion efficiency, and rapid startup, providing clean and reliable core power support for various mobile or fixed hydrogen energy equipment. It is a key execution component of “hydrogen energy substitution”.
Key advantages:
- Highly Modular Design: Compact structure facilitates easy integration, installation, and maintenance, shortening equipment development cycles.
- Flexible & Customizable Power Output: Offers a full range of power options from light-duty to heavy-duty, meeting the needs of various vehicles.
- True Zero Emissions & Ultra-Low Noise: Operation emits only water vapor, with noise levels far below internal combustion engines, enhancing user experience.
- Robust Environmental Tolerance: The optimized system delivers stable and reliable performance across a wide temperature range and under certain humidity conditions.
- Lower Operation & Maintenance :Long-life design combined with the stability of solid-state storage reduces maintenance frequency and spare parts costs.
- Perfect Compatibility with Solid-State Tanks: Optimized for low-pressure hydrogen supply, ensuring high system compatibility and excellent overall energy efficiency.
- Application Scenarios:Hydrogen vehicles, ships, drones, energy storage and power generation, emergency power supplies, industrial power equipment.

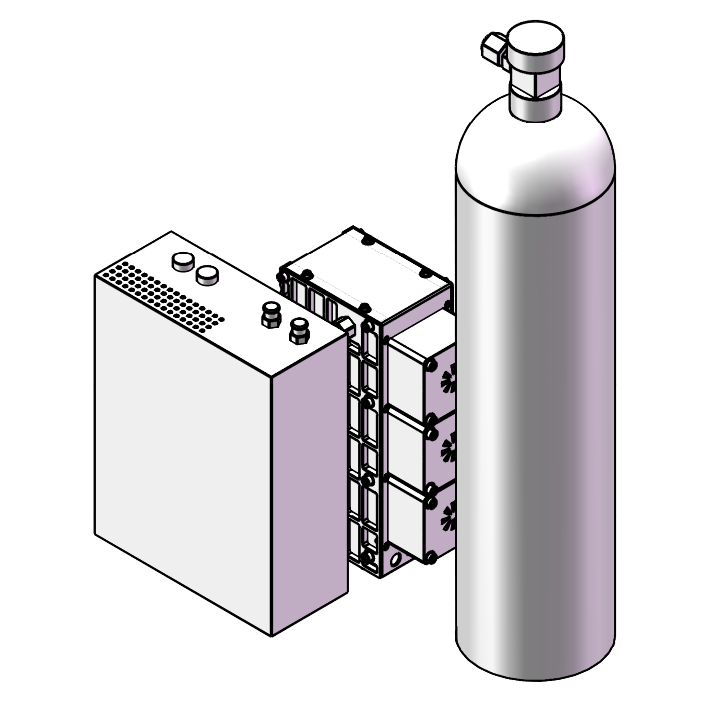

JYPS450-A0
Size(mm)
Weight
Fuel Cell Power
Output Voltage
Hydrogen Consumption
Hydrogen Pressure
Duration of Operation
320x240x450
17kg
450W
48V
>7NL/min
0.035~0.050 MPa
>2h

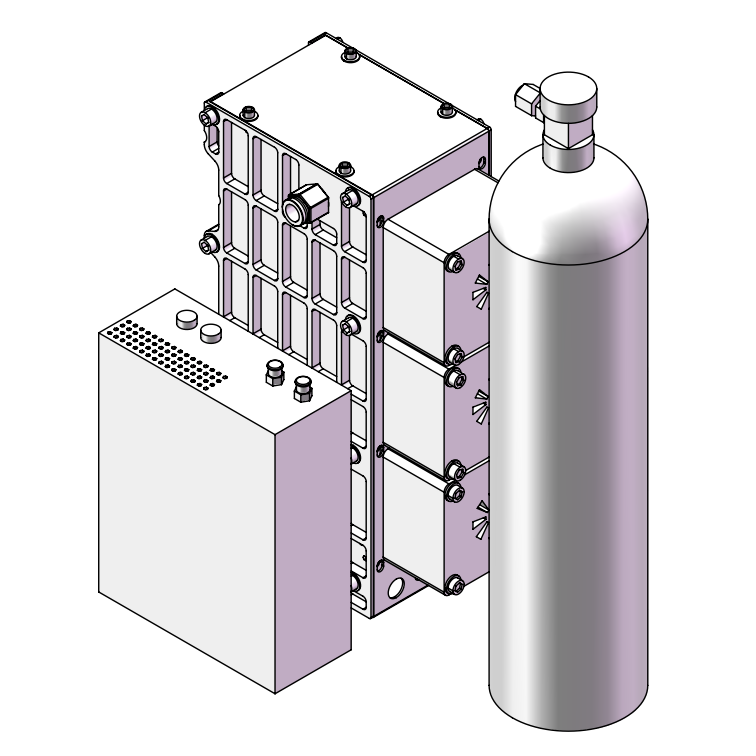

JYPS1000-A0
Size(mm)
Weight
Fuel Cell Power
Output Voltage
Hydrogen Consumption
Hydrogen Pressure
Duration of Operation
430x240x640
37kg
1kW
48V
13NL/min
0.035~0.050MPa
>5h
JYPS3000-H0
Size(mm)
Weight
Fuel Cell Power
Output Voltage
Hydrogen Consumption
Hydrogen Pressure
Duration of Operation
820x320x340
114kg
3kW
48V
61NL/min
0.15~0.20MPa
>4h
Applications

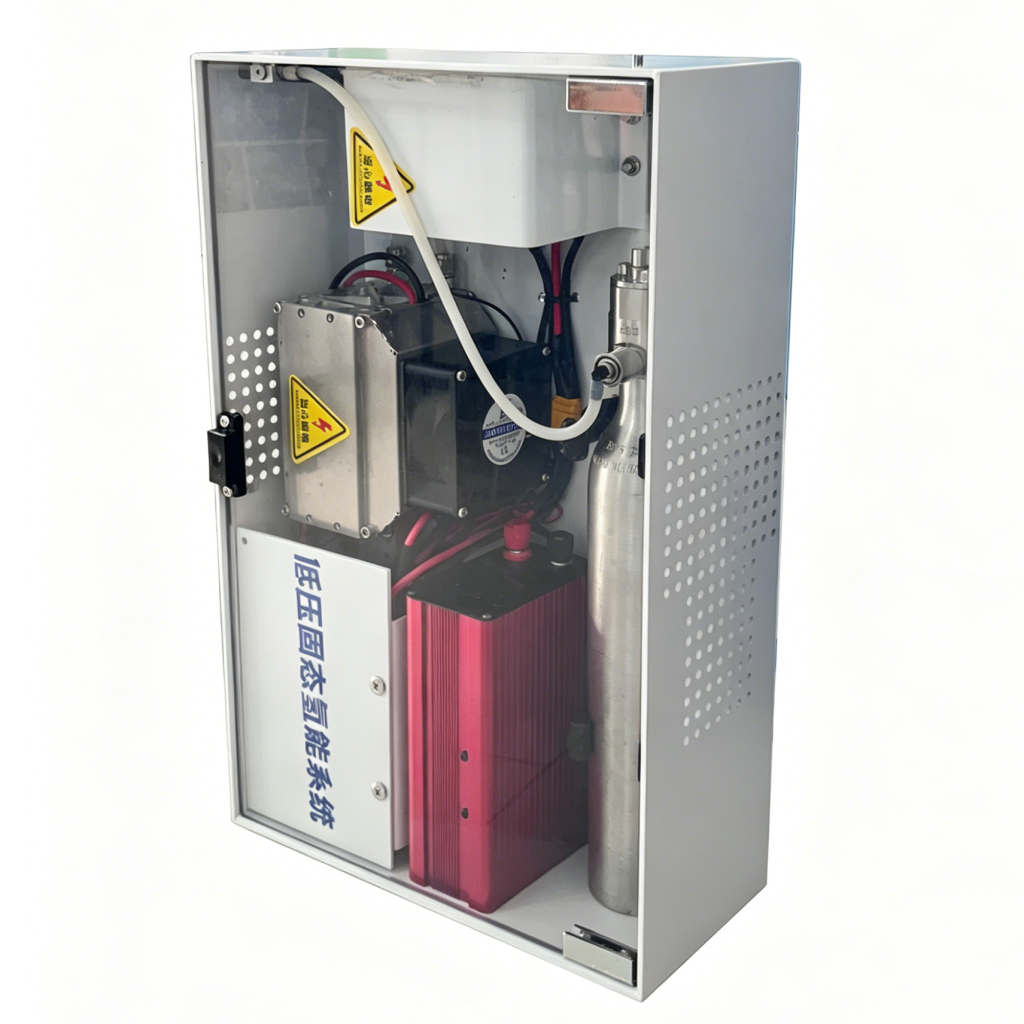

Protable Energy System
Energy Etore System
Hydrogen Mobility
Off grid Enengy Store System
